Questo modulo aggiuntivo è specifico per il palmare NOMAD L800, si sostituisce la cover con un adattatore che contiene la scheda GPS e poi si avvita sopra l'antenna, le varie guarnizioni mantengono le caratteristiche MIL SPEC del palmare.
Rivece i dati con un baud rate di 57600....... contro i 9600 standard

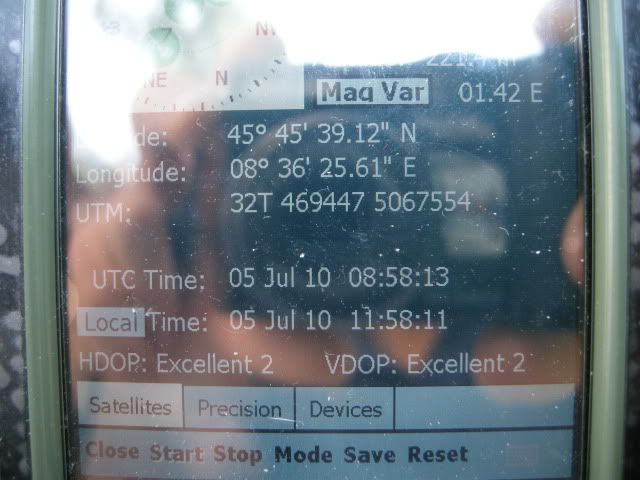

In pochi secondi si collega e mantiene il collegamento con una costanza notevole, verificato già in zone vicino a casa mia dove altri GPS avevano momentanei problemi ed in effetti la ricezione è superba..
Il palmare così configurato pesa circa 1 kg.
costo del modulo 996 US$
A seguire le caratteristiche del produttore:





Kenaz DGPS Attachment for the TDS / Trimble Nomad Rugged Handheld Data Collector

Model: N100 (N 100)

The Kenaz DGPS (Differential GPS) receiver is a high-accuracy GPS accessory that provides sub-meter (or subfoot with an external antenna) positional performance for handheld mapping. The Kenaz DGPS receiver has been specifically developed for the ruggedized Getac PS236, Nautiz X7, Trimble Nomad and Trimble Recon handheld computers.

The Kenaz is rugged yet small and compact. Its Compact Flash adapter and smart antenna module simplify field use even in the most demanding environments and keeps the total handheld solution IP67-rated.

Key Kenaz Series advantages:

*
Fully integrated, robust design made to fit the Getac PS236, Nomad, Recon or the Nautiz X7
*
Easy to use - just connect to the Getac PS236, Nomad, Recon or the Nautiz X7 and go!
*
COAST™ technology maintains accuracy even during temporary loss of differential signal
*
Low power consumption conserves handheld battery power.
*
Optional external antenna for additional accuracy
*
Exclusive e-Dif extended differential option available

*Note that this GPS module will not work with a Nomad that has an integrated barcode scanner or camera. This module attaches to the top of the Nomad and utilizes the existing Compact Flash slot. This GPS module includes the entire required assembly. This listing includes the GPS module attachment only - it does not include the data collector.

The Kenaz N100 is compatible with the Nomad handheld - Please contact us for pricing on a TDS / Trimble Nomad or Recon - Prosellnick@optonline.net

The Kenaz R100 is compatible with the Recon handheld - Please contact us for pricing on a TDS / Trimble Nomad or Recon - Prosellnick@optonline.net

The Kenaz NZ100 is compatible with the Nautiz X7 and Getac PS236- Please contact us for pricing on a Getac PS236, Nautiz X7 or X5 - Prosellnick@optonline.net

We are authorized dealers of Getac, Trimble / TDS and HandHeld Nautiz Products!
Please contact seller with any questions. Thank you!


GPS Module Specifications:

Receiver Type L1 (C/A), with carrier phase smoothing

Channels 12-channel parallel tracking (10-channel when tracking SBAS)

SBAS Tracking 2-channel, parallel tracking

Update Rate: 1 Hz

Horizontal Accuracy

< 0.4 m RMS (0,8 m – 95% CEP) confidence (DGPS)*,

<1.8 m RMS confidence (autonomous, no SA)*,

< 0.3 m RMS confidence (DGPS, external antenna)* - Email us for pricing on antennas for acheiving subfoot accuracy - Prosellnick@optonline.net

Cold Start 60 s (no almanac or RTC)

Warm Start Time 1 45 s (valid almanac, no RTC)

Warm Start Time 2 35 s (valid almanac and RTC)

Hot Start Time 20 s typical (valid almanac, RTC and two hours since last fix)

Reacquisition <1 s

* Depends on multipath environment, number of satellites in view, satellite geometry, and ionospheric activity

Operating Temperature -25 °F to 140 °F (-30 °C to 60 °C)

Storage Temperature -40 °F to 158 °F (-40 °C to 70 °C)

Dimensions (LxWxH) 4.0 x 3.8 x 1.4” (101 x 97 x 35 mm)

Weight <10.6 oz (300 g)

Status Indication (LED) 1 LED indicating power

Antenna Connector SMB, female
